Phân tích khí hòa tan trong máy biến áp: Các loại khí chính, các loại sự cố và cách giải thích kết quả phân tích khí hòa tan (DGA)

发布时间：Ngày 29 tháng 9 năm 2026, 09:32:52

  • Dissolved gas analysis (DGA) measures the fault gases dissolved in transformer insulating oil and is one of the most sensitive early-warning tools for oil-immersed transformers.
  • Key gases include hydrogen (H2), methane (CH4), ethane (C2H6), ethylene (C2H4), acetylene (C2H2), carbon monoxide (CO) and carbon dioxide (CO2).
  • Each gas points to a different fault type: hydrogen to partial discharge, ethylene to oil overheating, acetylene to arcing, and CO/CO2 to cellulose insulation stress.
  • Recognised DGA interpretation methods include the key gas method, IEC 60599 gas ratios, the Duval Triangle and Total Dissolved Combustible Gas (TDCG).
  • Cái rate of gas generation matters as much as absolute concentrations, so trending is essential.
  • Online DGA monitoring closes the gap between routine lab samples and gives continuous visibility of fast-developing faults.
  • DGA works best when combined with winding temperature, partial discharge, bushing và OLTC monitoring.

Mục lục

1. What Is Dissolved Gas Analysis (DGA) in Transformers? Transformer Oil Analysis Basics

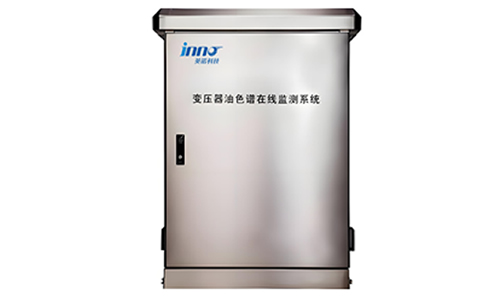

dga

1.1 Dissolved gas analysis is a diagnostic technique that extracts the gases dissolved in transformer insulating oil and measures their concentrations. Because every type of internal fault produces a characteristic gas pattern, the results let engineers identify a developing problem long before it causes an outage.

1.2 Utilities, industrial plants and service providers use DGA as a core element of transformer condition assessment. The method is described in IEC 60599 and IEEE C57.104, while sampling and gas extraction practices are covered by IEC 60567 and the ASTM D3612 and D3613 methods.

1.3 Why DGA Matters for Oil-Immersed Transformer Reliability

Mineral oil and cellulose paper are the primary insulation materials in a power transformer. When thermal or electrical stress breaks down these materials, gases are released into the oil. Detecting them early supports planned maintenance, reduces unplanned failures and helps operators judge remaining insulation life. For a wider view of how DGA fits with other diagnostics, see this guide to transformer condition monitoring methods and parameters.

2. How Fault Gases Form in Transformer Insulating Oil và Cellulose Insulation

2.1 Fault gases form when energy in the transformer is high enough to break chemical bonds in the oil or paper. The type and amount of gas depend on the temperature or energy level at the fault location.

2.2 Oil Decomposition Gases

At low temperatures, oil breaks down mainly into hydrogen and methane. As temperature increases, ethane and ethylene appear. At very high temperatures and in electrical arcs, acetylene is produced.

2.3 Paper Decomposition Gases

2.3.1 Carbon Oxides as Indicators of Solid Insulation Stress

Overheated cellulose releases carbon monoxide and carbon dioxide, together with furanic compounds. These gases are also produced by normal ageing, so their meaning depends on trend, ratio and context.

2.4 Normal Ageing versus Fault Conditions

A healthy transformer always contains some dissolved gas. Interpretation focuses on abnormal levels, unusual gas combinations and increasing generation rates. Persistent overloading and localised heating are common triggers, as discussed in this article on transformer overheating causes, symptoms and prevention.

3. Key Gases in Transformer Oil: Hydrogen, Methane, Ethylene, Acetylene and Carbon Monoxide

3.1 The table below summarises the main gases analysed in DGA and the faults they usually indicate.

Gas Formula Typical Source Main Fault Association
Hydrogen H2 Oil breakdown at low energy Partial discharge, corona, general overheating
Methane CH4 Oil breakdown Low-temperature thermal faults, partial discharge
Ethane C2H6 Oil breakdown Thermal faults at moderate temperature
Ethylene C2H4 Oil breakdown at high temperature Medium and high-temperature thermal faults
Acetylene C2H2 Very high temperature or arcing Arcing, high-energy discharge, severe overheating
Carbon monoxide CO Cellulose decomposition Paper overheating and ageing
Carbon dioxide CO2 Cellulose decomposition Paper overheating and ageing
Oxygen / Nitrogen O2 / N2 Atmosphere or oil preservation system Sealing condition, oxidation, ingress

3.2 Combustible Gases versus Non-Fault Gases

Hydrogen, hydrocarbons and carbon monoxide are combustible fault gases and are summed in the TDCG value. Oxygen and nitrogen are atmospheric gases; their ratio helps assess the oil preservation system and possible leaks.

3.3 Why Acetylene Deserves Immediate Attention

Acetylene forms only under extreme conditions. Even small, increasing amounts should trigger a follow-up sample and a review of the loading and operating history, because they may indicate arcing.

4. DGA Fault Types: Phóng điện cục bộ, Low-Energy and High-Energy Arcing, and Thermal Faults

4.1 IEC 60599 classifies internal faults into a small set of categories. Recognising the category is the first step towards a maintenance decision.

Code Fault Type Typical Dominant Gases Common Causes
PD Partial discharge H2, CH4 Voids, gas bubbles, poor impregnation, insulation defects
D1 Low-energy discharge H2, C2H2 Sparking, tracking, floating potentials
D2 High-energy discharge H2, C2H2, C2H4 Arcing, flashover, short circuits between windings
T1 Thermal fault below 300 °C CH4, C2H6 Overloading, restricted oil flow
T2 Thermal fault 300–700 °C C2H4, CH4 Circulating currents, poor contacts, core heating
T3 Thermal fault above 700 °C C2H4, H2, some C2H2 Severe overheating, large circulating currents

4.2 Partial Discharge Faults

Partial discharge produces mostly hydrogen with some methane. It can progress to more serious insulation damage if left unmanaged. Dedicated sensors add precision; see this overview of partial discharge monitoring in transformers.

4.3 Discharge of Energy: Arcing

4.3.1 Low-Energy versus High-Energy Discharges

Low-energy discharges create hydrogen and acetylene at modest rates. High-energy arcing adds significant ethylene and generates gas quickly, which is why rapid, repeated sampling or continuous monitoring is valuable.

4.4 Thermal Faults

4.4.1 Hot Spots in Windings, Core and Connections

Thermal faults are identified by rising methane, ethane and ethylene. Direct winding temperature measurement provides independent evidence; read more about transformer winding hot spot temperature measurement và fiber optic temperature measurement in transformers.

5. DGA Interpretation Methods: Key Gas Method, IEC 60599 Gas Ratios, Duval Triangle và TDCG

5.1 No single method is perfect. Experienced engineers compare two or more approaches and always review the trend history.

5.2 Key Gas Method

The key gas method links the predominant gas to a fault type. For example, ethylene dominance suggests oil overheating, hydrogen dominance suggests partial discharge, acetylene with hydrogen suggests arcing, and carbon monoxide dominance suggests cellulose involvement.

5.3 IEC 60599 Gas Ratio Method

Three ratios are calculated: C2H2/C2H4, CH4/H2 and C2H4/C2H6. The table shows the classic ratio ranges used to classify fault types (NS = non-significant).

Fault C2H2 / C2H4 CH4 / H2 C2H4 / C2H6
PD NS < 0.2 < 0.2
D1 > 1 0.1 – 0.5 > 1
D2 0.6 – 2.5 0.1 – 1 > 2
T1 NS > 1 but NS < 1
T2 < 0.1 > 1 1 – 4
T3 < 0.2 > 1 > 4

5.4 Duval Triangle

5.4.1 Graphical Fault Classification

The Duval Triangle plots the relative percentages of methane, ethylene and acetylene on a triangular chart, with zones for PD, D1, D2, T1, T2, T3 and a mixed thermal/electrical zone (DT). Its visual format makes it popular for quick classification and reporting.

5.5 TDCG and Gas Generation Rates

5.5.1 Why Rate of Change Is More Informative

TDCG offers an overall severity indicator, but a stable high value can be less concerning than a smaller value that is climbing quickly. Guidance in IEEE C57.104 uses both concentration levels and generation rates when recommending sampling intervals.

5.6 CO2/CO Ratio for Paper Involvement

A low CO2/CO ratio (commonly below 3) can suggest that a fault involves paper insulation, whereas a high ratio (above about 10) is often associated with normal ageing. Treat it as supporting evidence rather than a stand-alone verdict.

6. Oil Sampling, Laboratory DGA versus Online DGA Monitoring

6.1 Laboratory DGA remains the reference method. Oil is drawn into a syringe or bottle, sent to a laboratory and analysed by gas chromatography. Correct sampling technique, sample labelling and prompt shipping directly affect result quality.

6.2 Limitations of Periodic Sampling

Interval sampling can miss fast-developing faults. Sample handling errors, transport delays and laboratory variation also add uncertainty. Many operators therefore add continuous monitoring on critical units. This comparison of online DGA vs oil sampling explains the trade-offs in detail.

6.3 Benefits of Online DGA Monitoring

6.3.1 Continuous Data, Faster Response

An Hệ thống giám sát phân tích khí hòa tan (DGA) trực tuyến dành cho dầu biến áp extracts gas from the oil on the transformer and measures it automatically at set intervals. Operators see trends in near real time and can set alarms on both concentration and rate of change. For a broader look at the technology, visit Giám sát DGA trực tuyến cho máy biến áp or the dissolved gas analysis solution page.

7. Hệ thống giám sát DGA trực tuyến: Typical Technical Parameters for Transformer Gas Sensors

7.1 The table below lists typical specification ranges found in online DGA monitors used on oil-immersed power transformers. Always confirm exact values against the current product datasheet before specifying equipment.

Tham số Typical Specification
Monitored gases H2, CO, CH4, C2H4, C2H6, C2H2 (some models add CO2, O2, moisture in oil)
Gas detection principle Gas chromatography, photoacoustic spectroscopy or sensor-based detection
Oil-gas separation Membrane or headspace extraction
Sampling interval Configurable, from hourly to daily
Communication RS485 (Modbus), Ethernet, IEC 61850 or DNP3 (model dependent)
Power supply AC 220 V or DC 110/220 V
Operating temperature −40 °C to +55 °C (outdoor installation)
Ingress protection IP55 or higher enclosure
Installation Oil valve connection on the transformer main tank, with oil return
Outputs Alarm relays, trend data, remote software access

7.2 Selection Criteria

Match the number of gases to the risk level of the transformer. Large step-up and grid transformers usually justify multi-gas monitors, while distribution units may only need hydrogen-based screening. Check the communication protocol with your SCADA system and confirm the oil valve type before ordering.

8. Combining DGA with Winding Temperature, Phóng điện cục bộ, Ống lót và Giám sát OLTC

8.1 DGA shows that a fault is present, but other measurements help locate it and confirm its cause. A layered approach reduces false alarms and improves decision quality.

8.2 Temperature Monitoring

If DGA points to thermal faults, direct winding temperature data can confirm hot-spot conditions. Explore transformer oil temperature, level and pressure monitoring và fiber optic temperature monitoring giải pháp.

8.3 Partial Discharge and Bushing Monitoring

Hydrogen-rich results are often cross-checked with a transformer partial discharge online monitoring system. Bushing faults are a leading cause of catastrophic transformer failures, so a transformer bushing monitoring system is a useful complement.

8.4 OLTC Monitoring

The on-load tap changer is a frequent source of arcing-related gases. A transformer OLTC online monitoring system helps distinguish tap changer activity from main tank faults.

8.5 Application and System Level

See how these tools fit together in oil-immersed transformer monitoring, transformer insulation monitoring and the complete giám sát máy biến áp solution. For failure patterns and detection methods, read the transformer failure modes guide.

9. DGA Trending, Alarm Limits and Recommended Maintenance Actions

9.1 Trending is the backbone of good DGA practice. Record every result with the date, load, oil temperature and any switching or fault events so that changes can be explained.

9.2 Setting Alarm Thresholds

Use IEEE C57.104 or IEC 60599 typical values as a starting point, then adapt them to the age, design and history of each transformer. Set both an absolute alarm and a rate-of-rise alarm.

9.3 Recommended Actions after an Abnormal Result

9.3.1 Step-by-Step Response

  • Resample promptly to confirm the result and rule out sampling error.
  • Increase sampling frequency while the gas rate is elevated.
  • Classify the fault using at least two interpretation methods.
  • Review loading, cooling, tap changer operation and recent through-faults.
  • Schedule electrical tests or an internal inspection when the evidence supports it.
  • Reduce load or remove the transformer from service if acetylene is rising quickly.

10. Common DGA Interpretation Mistakes and Best Practices for Transformer Diagnostics

10.1 Even experienced teams make avoidable errors. The list below covers the most frequent ones.

10.2 Typical Mistakes

  • Relying on one sample instead of a trend.
  • Ignoring sampling contamination, such as air bubbles or dirty syringes.
  • Applying ratio tables when gas levels are too low to be meaningful.
  • Overlooking gases carried over from a previous fault, oil treatment or tap changer leakage.
  • Failing to record when oil was degassed or filtered.

10.3 Best Practices

Follow standard sampling procedures, use accredited laboratories, keep a full event log and pair DGA with electrical and temperature measurements. If you need help selecting a monitoring solution, visit contact us, review our certificates or learn more about us.

11. Frequently Asked Questions (FAQ) about Phân tích khí hòa tan in Máy biến áp điện

1. What is dissolved gas analysis in a transformer?

It is a test that measures gases dissolved in insulating oil to detect internal faults such as overheating, partial discharge and arcing at an early stage.

2. Which gases are measured in a DGA test?

Standard tests measure hydrogen, methane, ethane, ethylene, acetylene, carbon monoxide and carbon dioxide, along with oxygen and nitrogen.

3. What does high hydrogen mean in transformer oil?

High hydrogen commonly indicates partial discharge or low-energy electrical activity, but it can also come from overheating. Check the trend and the other gases before drawing conclusions.

4. What does acetylene in transformer oil indicate?

Acetylene points to arcing or very high temperatures. Any confirmed increase deserves a prompt investigation.

5. How often should transformer oil be tested for DGA?

Many utilities test annually for normal units and more often for critical, older or abnormal transformers. Follow the sampling intervals recommended in IEEE C57.104 or your company policy.

6. What is the Duval Triangle?

It is a graphical method that plots methane, ethylene and acetylene percentages to classify faults into PD, discharge and thermal zones.

7. What is the difference between online DGA and laboratory DGA?

Laboratory DGA analyses a physical sample taken at intervals, while online DGA measures gases continuously or at frequent intervals directly on the transformer. Many operators use both, with the laboratory serving as a cross-check.

8. What is TDCG in DGA?

Total Dissolved Combustible Gas is the sum of the combustible fault gases: hydrogen, methane, ethane, ethylene, acetylene and carbon monoxide. It is used as an overall indicator of gas activity.

9. Can DGA detect all transformer faults?

No. DGA is highly sensitive to thermal and electrical faults in the oil-paper system but may not reveal mechanical problems such as winding deformation. Complementary tests are recommended.

10. What standards govern DGA interpretation?

IEC 60599 and IEEE C57.104 cover interpretation, IEC 60567 covers sampling and gas extraction, and ASTM D3612 and D3613 describe analysis and sampling methods.
